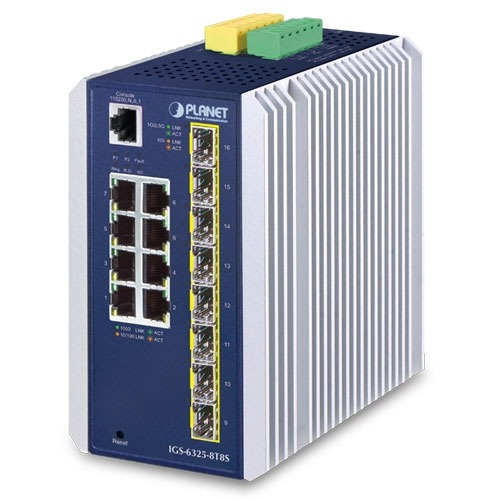

IGS-6325 / IGS-6329 Series
Positioning within Planet’s range: these are the Layer 3, ring-capable, top-tier industrial switches — sitting above IGS-4215 (L2/L4) and IGS-5225 (L2+) in Planet’s own product family chart
Wide port/speed range across the two series:
- Rack-mount and DIN-rail variants available, 8-24 copper ports depending on model
- 10G SFP+ uplinks (up to 4 ports on higher-end models) — genuine high-bandwidth backbone connectivity
- 2.5G/Multi-Gigabit copper options (IGS-6325-4T2X) — run higher speeds over existing Cat5e/6 cabling with no recabling cost
- Non-blocking switch fabric up to 136Gbps on the top-spec 8T8S4X model
- PoE++ (802.3bt) variants deliver up to 95W per port, with total budgets up to 440W — genuinely enough for multi-channel wireless APs, PTZ speed dome cameras, and other high-draw PoE devices
Layer 3 routing
IPv4/IPv6 VLAN static routing, plus automatic OSPFv2 configuration — genuinely dynamic routing at the industrial edge, not just static rules
Resilience & environment
ITU-T G.8032 ERPS ring recovery + 802.1s MSTP, redundant dual power input (single input = 240W PoE budget, dual = 360-440W)
Operating range -40°C to +75°C, rugged IP30 metal case
IGS-6329 specifically certified to EN 61000-6-2/61000-6-4 Heavy Industrial EMC and railway EN 50121-4 — genuinely certified for rail-grade EMC noise environments, worth knowing if you ever touch transport infrastructure
Positioning within Planet’s range: these are the Layer 3, ring-capable, top-tier industrial switches — sitting above IGS-4215 (L2/L4) and IGS-5225 (L2+) in Planet’s own product family chart
Wide port/speed range across the two series:
Rack-mount and DIN-rail variants available, 8-24 copper ports depending on model
10G SFP+ uplinks (up to 4 ports on higher-end models) — genuine high-bandwidth backbone connectivity
2.5G/Multi-Gigabit copper options (IGS-6325-4T2X) — run higher speeds over existing Cat5e/6 cabling with no recabling cost
Non-blocking switch fabric up to 136Gbps on the top-spec 8T8S4X model
PoE++ (802.3bt) variants deliver up to 95W per port, with total budgets up to 440W — genuinely enough for multi-channel wireless APs, PTZ speed dome cameras, and other high-draw PoE devices
Layer 3 routing
IPv4/IPv6 VLAN static routing, plus automatic OSPFv2 configuration — genuinely dynamic routing at the industrial edge, not just static rules
Resilience & environment
ITU-T G.8032 ERPS ring recovery + 802.1s MSTP, redundant dual power input (single input = 240W PoE budget, dual = 360-440W)
Operating range -40°C to +75°C, rugged IP30 metal case
IGS-6329 specifically certified to EN 61000-6-2/61000-6-4 Heavy Industrial EMC and railway EN 50121-4 — genuinely certified for rail-grade EMC noise environments, worth knowing if you ever touch transport infrastructure
Video/security-specific feature
ONVIF device auto-discovery — one click in the switch’s GUI to find and display all ONVIF-compliant cameras on the network — a genuinely useful commissioning/troubleshooting tool specific to CCTV deployments
Security: same suite as the rest of the Planet range — SSH, TLS/SSL, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1X, RADIUS/TACACS+, SNMPv3
ONVIF device auto-discovery — one click in the switch’s GUI to find and display all ONVIF-compliant cameras on the network — a genuinely useful commissioning/troubleshooting tool specific to CCTV deployments
Security: same suite as the rest of the Planet range — SSH, TLS/SSL, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1X, RADIUS/TACACS+, SNMPv3
IGS-6325 / IGS-6329 Series Specifications
Top-Tier Layer 3 Routing & High-Speed Backbones
Sits at the top of Planet's industrial range with non-blocking switching (up to 136Gbps), dynamic IPv4 OSPFv2 / static IPv6 routing, 2.5G copper options, and up to four 10G SFP+ uplinks for high-bandwidth networks.
High-Power 802.3bt PoE++ & Smart Management
Delivers up to 95W per port (up to 440W total budget) to drive high-draw PTZ cameras and wireless APs, featuring automated PD ping alive checks, reboot schedules, and power recycling.
Hardened Build & Railway-Grade Certifications
Housed in a rugged IP30 metal chassis operating from -40°C to +75°C with ITU-T G.8032 ERPS ring recovery, with IGS-6329 models specifically certified to heavy industrial EMC and railway (EN 50121-4) standards.
Surveillance-Optimized ONVIF Auto-Discovery
Features one-click ONVIF camera discovery via the GUI to automatically locate, map, and control video surveillance devices, backed by L2–L4 ACLs, 802.1X, and encrypted management security.
