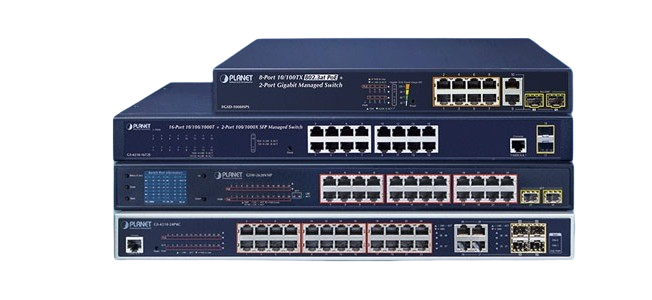

Layer 3 Aggregation Switch Range

GS-5220 / GS-6320 Series — LCD Touch Screen aggregation switches

Layer 2/3, 20Gbps internal fabric, 10G ports
LCD touchscreen on the front panel — genuinely unusual, lets an on-site technician check status/config without a laptop
Up to 14-24 trunk groups, MSTP, Q-in-Q VLAN, private VLAN
PoE reboot control from the GUI — remotely power-cycle a stuck camera or device without a truck roll
ONVIF auto-discovery — same one-click camera detection feature as the industrial IGS range

GS-6322 Series — high-power aggregation

24× copper + 2× 10GBASE-T + 2× 10G SFP+ ports
802.3bt PoE++ up to 95W/port, five selectable PoE output modes
Three optional redundant AC power supplies (920W/1200W/2000W) — genuinely scalable power redundancy for “”high-tech facilities requiring the highest power integrity””

MGS-6311 Series — enterprise backbone aggregation

120Gbps non-blocking fabric, up to 64 trunk groups (8 ports each)
Layer 3 static routing, RIP, and OSPF
2.5Gbps Multi-Gig + PoE++ on newer models (24UPL6X) — built specifically for Wi-Fi 6/6E/7 AP backhaul, which needs more than standard Gigabit
PoE scheduling — enable/disable PoE per port on a time schedule, genuine energy-saving feature
Smart fan design — balances cooling/noise based on load and temperature
Managed via Planet’s NMS for remote monitoring of connected PDs

XGS-6350 Series — genuinely top-tier

16× 10G SFP+ + 8× 25G SFP28 + 4× 100G QSFP28 — serious enterprise-grade uplink capacity
BGP, OSPFv2, RIP, Policy Routing, BFD — full dynamic routing stack, well beyond basic switching

Layer 3 Aggregation Switch Range

Layer 3 Aggregation Switch Range Specifications

Front-Panel LCD Touchscreen & ONVIF Discovery

Features an intuitive color LCD touchscreen on selected models for instant on-site status monitoring and IP address management without a laptop, paired with one-click ONVIF camera discovery for CCTV setups.

High-Power 95W PoE++ with Redundant Power

Delivers up to 95W per port via 802.3bt PoE++ with selectable output modes, GUI-based remote port power-cycling, and optional triple AC power supplies (up to 2000W) for maximum power integrity.

Multi-Gigabit Wi-Fi 7 Backhaul & Smart Energy Management

Provides 2.5G Multi-Gigabit copper ports to prevent access point backhaul bottlenecks, alongside automated PoE time-scheduling and load-aware smart fan control to reduce energy use and operating noise.

Full Enterprise L3 Stack & 100G High-Speed Fabric

Scales to top-tier core environments with 120Gbps to multi-terabit switching fabrics, offering full dynamic routing (BGP, OSPF, RIP, Policy Routing) and ultra-high-speed 10G, 25G, and 100G QSFP28 uplinks.
