UISP airMAX (Rocket Prism, NanoStation, PowerBeam)

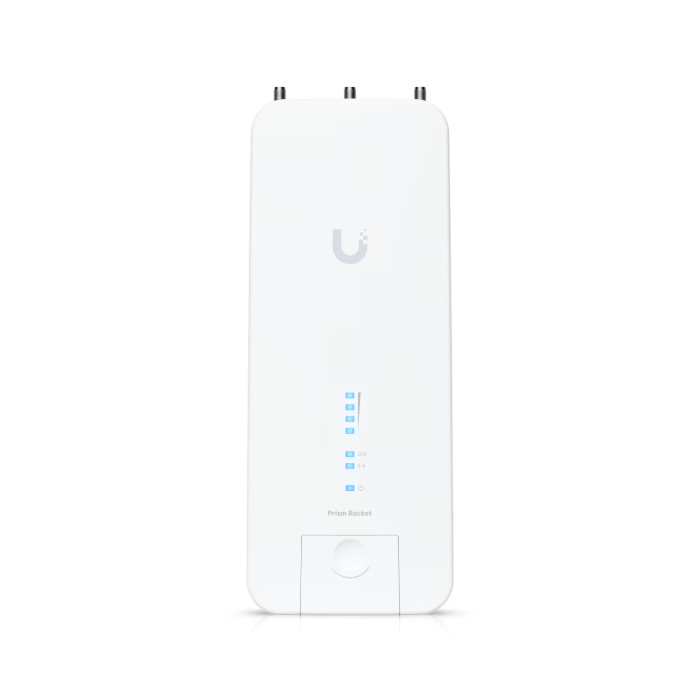

Rocket Prism 5AC — the PtMP/PtP basestation

Up to 500+ Mbps real TCP/IP throughput (Gen2)
airPrism technology — a High-Selectivity Receiver (HSR) that isolates signals within the operating channel and rejects interference, genuinely useful in noisy/high-density RF environments (relevant on sites with lots of other wireless gear)
256QAM modulation — up to triple the throughput of legacy airMAX (non-AC) products
Integrated separate Wi-Fi radio for fast mobile-device setup, no laptop needed for initial config
-40°C to +80°C operating range — genuinely extreme, well beyond most of your other network gear
Passive PoE 2-pair power, single GbE RJ45

PowerBeam 5AC — dedicated PtP bridge

High-performance point-to-point bridge with integrated dish reflector — purpose-built for a dedicated link between two points rather than multi-client basestation duty
Multiple gain/power tiers (PowerBeam 5AC 500, 620) for different link distance/throughput requirements

NanoStation 5AC — compact PtP/CPE radio

Compact, classic NanoStation form factor with updated airMAX AC chipset
UISP-ready — managed centrally through the UISP platform
Loco variant available for smaller/lighter installs

Shared across the family:

All UISP-managed — centralised monitoring/configuration through the platform already on your list
Genuinely wide product spread across the airMAX 5GHz range (LiteBeam, IsoStation, Bullet, PrismStation also available in the same family for different range/budget/use-case needs)”

UISP airMAX (Rocket Prism, NanoStation, PowerBeam)

UISP airMAX (Rocket Prism, NanoStation, PowerBeam) Specifications

High-Throughput airMAX AC & airPrism RF Filtering

Delivers 500+ Mbps real TCP/IP throughput using 256QAM modulation, backed by active airPrism High-Selectivity Receiver technology to isolate operating channels and reject severe RF noise.

Purpose-Built Hardware for PtP & PtMP Links

Offers dedicated form factors for every deployment role—including high-gain dish reflectors for long-range point-to-point bridging (PowerBeam) and compact CPE/bridge stations (NanoStation/Loco).

Dedicated Wi-Fi Management Radio & Mobile Setup

Features a separate built-in 2.4GHz Wi-Fi management radio, allowing field technicians to perform initial configuration and tuning directly from a mobile device without a laptop or cables.

Centralized UISP Management & Hardened Build

Integrates directly into the Ubiquiti UISP platform for centralized monitoring and configuration across all links, housed in weather-resistant enclosures rated for extreme temperatures (-40°C to +80°C).

Contact Us Now
Professional Installation and Support

Professional Installation and Support

Eastlakes Security and Controls provides complete installation, configuration and ongoing support for all security products. Our technicians ensure your system is positioned correctly, configured for optimal performance and integrated seamlessly with your existing security infrastructure.

Support Includes:

  • Site assessment and equipment positioning
  • Professional installation
  • System setup and configuration
  • User guidance and training
  • Ongoing technical support
